Volumetric geogrid with perforation

Volumetric geogrid with perforation

80.00 $ Цена за м² (от)

  • Description
  • Questions & Answers

Description

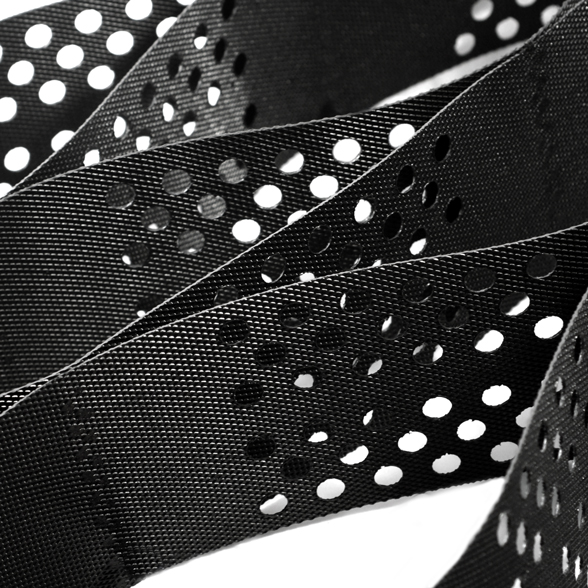

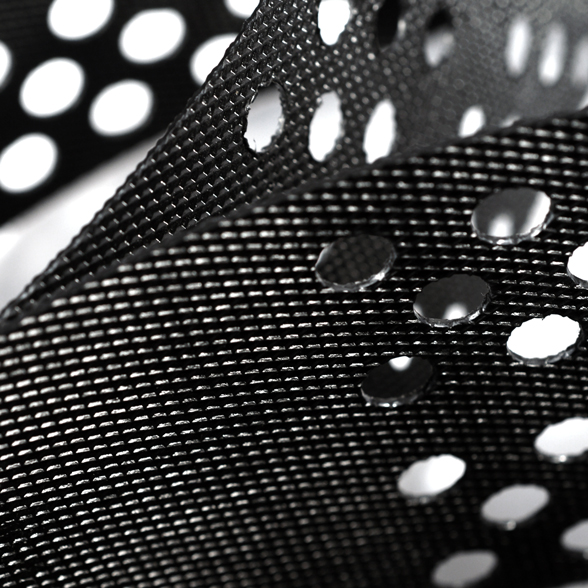

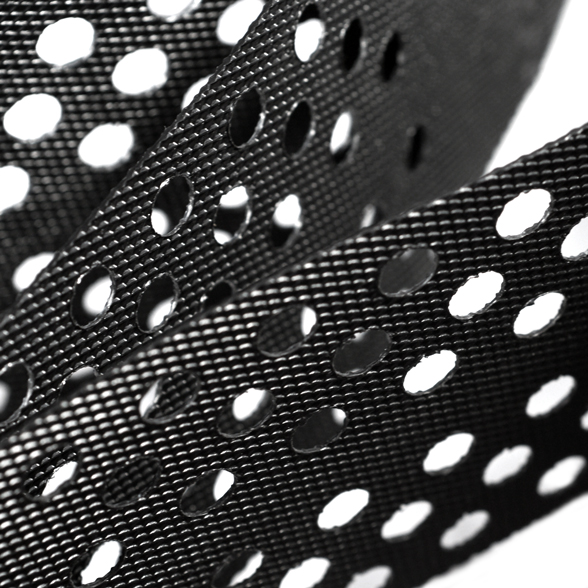

A three-dimensional volume geogrid can be produced with a cell height of 76, 100, 150, 200 mm, depending on the design and customer requirements. Chemical resistance from 0.5 to 14 Рн allows using it in any soil types, the cell size can be released depending on the customer’s need: 165х165 mm, 210х210mm, 250х250 mm, 300х300 mm. In agreement with the customer, other sizes may be produced. Perforation provides an additional draining function, which prevents sand from washing out of the cell

The volumetric geogrid without perforation is made of primary polypropylene, welding of joints is carried out by ultrasonic method. The volumetric geogrid is used to strengthen the slopes and cliffs, the flexibility of the geogrid allows it to be used on any terrain, the geogrid can be fastened with special anchors for the geogrid (fiberglass or metal).

Index

Value

Test method
Cell height, mm ± 5

76, 100, 150, 200

TU 2246-002-56910145-2011

Thickness of tape, ± 10%

1,5

GOST 17035

Tensile strength at tension, kN / m, not less than

30

GOST 11262 и
ODM 218.5.006-2010

Relative elongation at yield point,%, not more than

15

GOST 11262

Strength of the seam, kN / m, not less than

25

GOST 11262

Shock toughness at

– 60 °С

Without Destruction

GOST 4647

Flexibility on the bar

at

– 20 °С

– 60 °С

absence of cracks and delaminations on the front side of the material

GOST 2678

Resistance to repeated freezing and thawing (frost resistance),%
not less

95

ODM 218.5.006-2010

Chemical resistance, pH

0,5-14

TU 2246-002-56910145-2011

Coefficient of damageability,%, not more than

2

ODM 218.5.006-2010

Module size *
Height Cell size, mm Linear size, m Module area, m² Module weight, kg

76

165х165

2,33х6,99

16,3

20

100

210х210

2,40х9,00

21,6

27

150

250х250

2,47х10,59

26,1

41

200

300х300

2,54х12,72

32,3

56
