The claimed characteristics of the materials sold by us may differ only for the better
The profile for the universal expansion joint is exploited by the DSHA-15 mortar (DSHA-15 UGL)
1,360.00 $ – 2,840.00 $ Price per running meter
- Additional information
- Questions & Answers

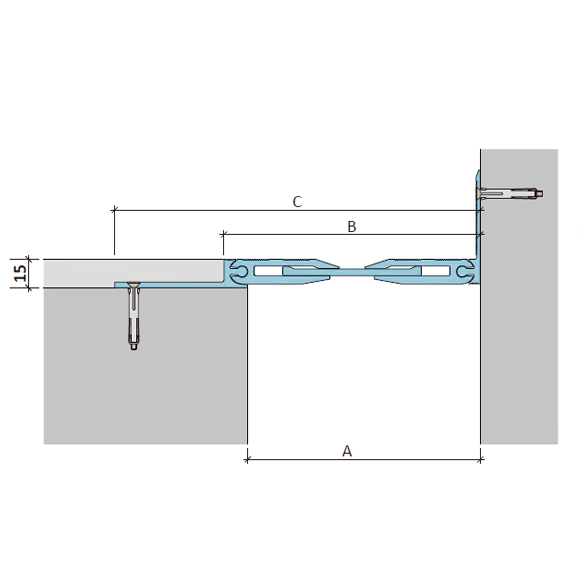

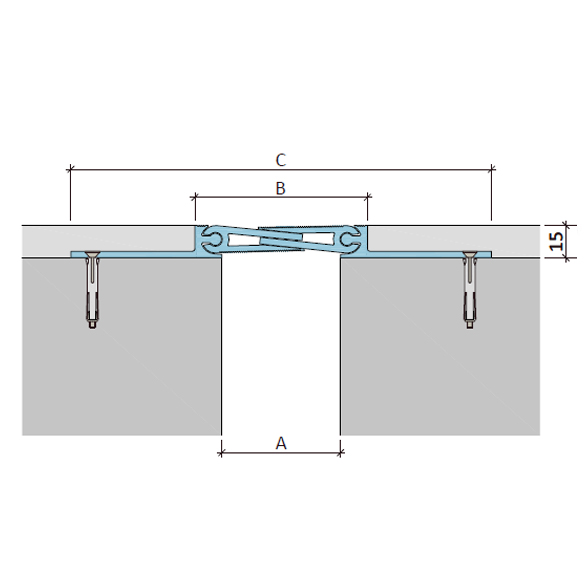

Distortion profile DZHA-15 (DZHA-15 UGL) (Dilatation device AQUASTOP / AquaBarrier DZHA-15 (DZHA-15 UGL) – designed for the construction of expansion joints in areas of increased pedestrian operational load (shopping centers, shops, etc.) the compensator is made of profiled long-lived aluminum, the width of the deformed seam from 25 (maximum withheld load of 0.35 MPa) to 205 (the minimum withstand load 0.25 MPa) mm depending on the modification, it is also possible to release this deformation profile into the corner Mounting profile DZHA-15 – mortgage, mounted in front of the finish coat, with a total thickness of 15 mm.
Deformation profile DZHA-15 (DZHA-15 UGL) The water-heater (as well as other deformation aluminum profiles) is made of aluminum in accordance with GOST 8617-81 t GOST 22233-2001, due to this the material has high strength, chemical and corrosion resistance, durability and ecological safety.
Supplied in multiples of 3 running meters. The standard warranty period of operation of the deformation profile provided by the manufacturer is 5 years, but on larger projects it is possible to extend the warranty period of operation up to 15 years by preliminary agreement with the employees of Geosynetika. Moscow.
|Deformation profile||Compensator||Compensator view||Displacements, mm||Dimensions, mm||Load, MPa|
|DSHA–15 / 025||А1–030||5||5||6||50||220||0,35|
|DSHA–15–UGL / 038||135|
|DSHA–15 / 055||А1–050||15||14||10||80||250||0,25|
|DSHA–15–UGL / 068||165|
|DSHA–15 / 085||А1–070||22||30||13||110||280||0,1|
|DSHA–15–UGL / 098||195|
|DSHA–15 / 110||А2–130||13||26||20||135||305||0,05|
|DSHA–15–UGL / 125||220|
|DSHA–15 / 150||А2–170||30||26||25||175||345||0,05|
|DSHA–15–UGL / 165||260|
|DSHA–15 / 180||А2–200||30||26||30||205||375||0,03|
|DSHA–15–UGL / 195||290|
|Width of the expansion joint, mm|| |
110, 150, 180, 25, 55, 85
